Pneumatic Control Ball Valve 2 Piece 1 Inch 2 Inch Butt Welding
| Herkunftsort | CHINA |
|---|---|
| Markenname | FABIA |
| Zertifizierung | ISO9001,CE,CCS,DNV |
| Modellnummer | 1/8 Zoll 36 Zoll |
| Dokument | Produktbroschüre PDF |
| Min Bestellmenge | 1 Set |
| Preis | Verhandlungsfähig |
| Verpackung Informationen | Kartons/Holzfälle |
| Lieferzeit | 15-30 Arbeitstage |
| Zahlungsbedingungen | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Versorgungsmaterial-Fähigkeit | 100-1000 Set pro Woche |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Produktname | Pneumatisches Schweißkugelventil | Ventiltyp | Pneumatische Kugelventile |
|---|---|---|---|
| Material | Edelstahl | Ventilbetrieb | Pneumatisch |
| Verbindungsart | Geschweißt | Aktuator | Pneumatisch |
| Sitz | Ptfe | Ventildruck | 150 - 2500LB |
| Ventiltemperatur | -30℃~+150℃ |
Produkt-Beschreibung

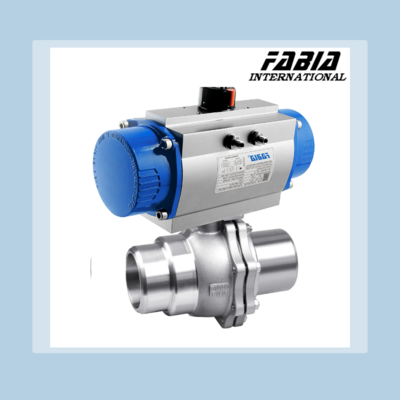

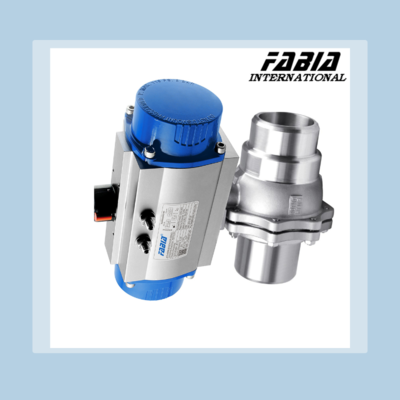

FABIA 2 Piece Pneumatic Control Ball Valve 1 Inch 2 Inch Butt Welding
1. Description:
Can be used in petroleum, chemical industry, metallurgy, electric power, urban construction and other fields, such as the transport of oil, natural gas, chemicals, steam and other high temperature, high pressure fluids, as well as the control of various fluids and urban water supply, drainage and so on.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | 2 Piece Pneumatic Control Ball Valve 1 Inch 2 Inch Butt Welding | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Structure of the two-piece ball valve is simple, and because of its simple internal structure.
- Can reduce the failure rate during use, and also facilitate maintenance and cleaning.
- Same time, because the switching mode is rotating, the operation is very convenient, and only a slight turn can be realized.
- Sealing performance of the two-piece ball valve is good, and the special sealing structure can effectively prevent leakage problems.
- Also prevent external dust and pollutants from entering the pipeline, so as to ensure the safety and hygiene of the pipeline.
- Corrosion resistance of the two-piece ball valve is also very good.
- Because its material is mostly stainless steel, copper and other corrosion-resistant materials.
- Can be applied to the fluid control of various liquids and gases, and can also be applied to the working environment of high temperature and high pressure.
