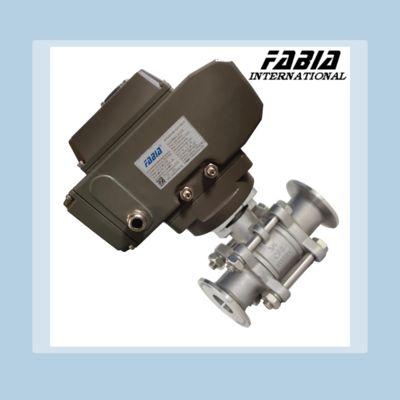

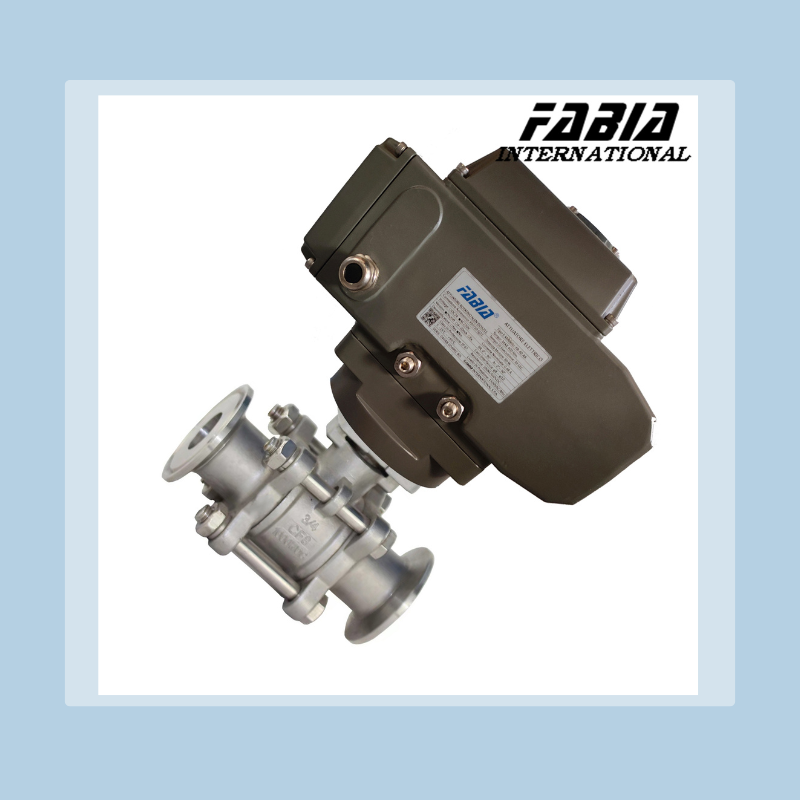

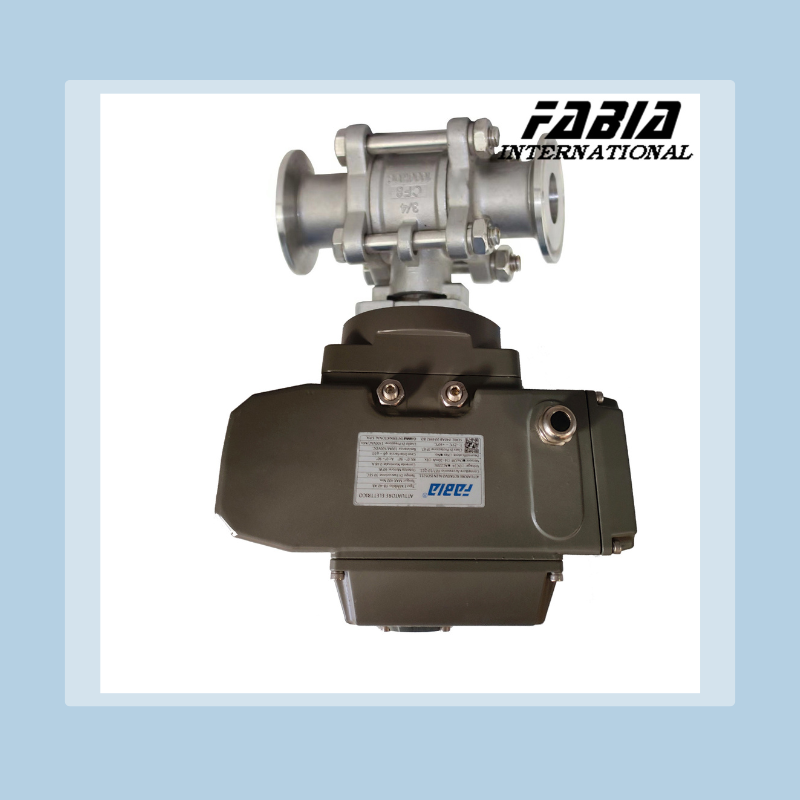

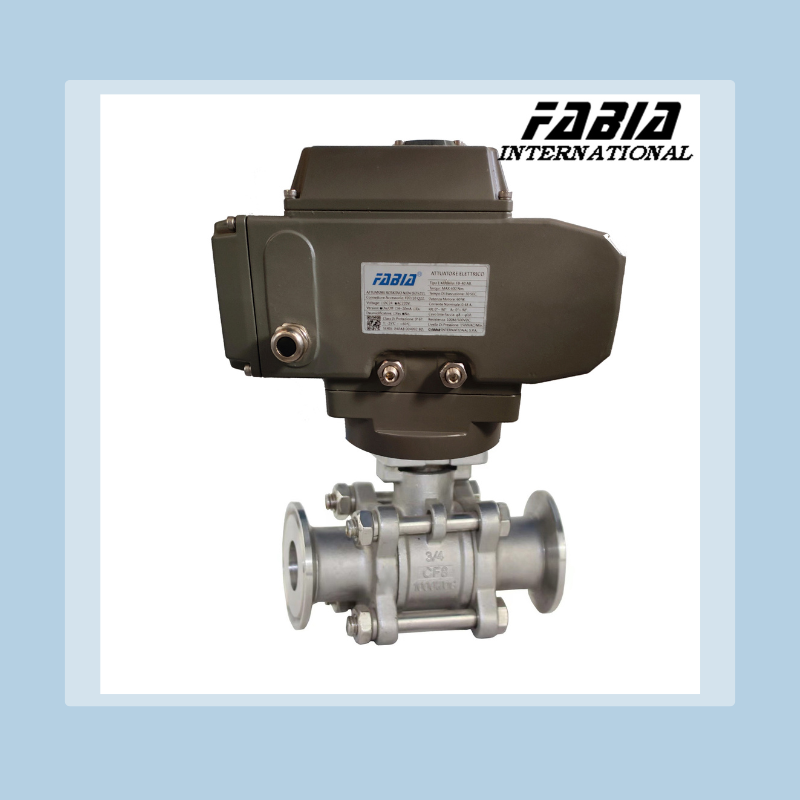

Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient

  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
Herkunftsort CHINA
Markenname FABIA
Zertifizierung ISO9001,CE,CCS,DNV
Modellnummer 1/8 Zoll 36 Zoll
Dokument Produktbroschüre PDF
Min Bestellmenge 1 Set
Preis Verhandlungsfähig
Verpackung Informationen Kartons/Holzfälle
Lieferzeit 15-30 Arbeitstage
Zahlungsbedingungen L/C, D/A, D/P, T/T, Moneygram, Western Union
Versorgungsmaterial-Fähigkeit 100-1000 Set pro Woche

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Produktname Elektro-Hochdruck-Drei-Teil-Kugelventil Ventiltyp Hochdruckkugelventil
Ventilmaterial Edelstahl Ventilbetrieb Elektrisch
Ventilverbindung Gewinde Ventildesign 3 Stück
Ventildruck 1000 psi Ventildruckbewertung Klasse 150
Ventilversiegelung Metallversiegelung Ventilgröße 1 / 2 bis 8
Ventiltemperatur 260°F Ventilanwendung Erdöl, Chemikalie, Leistung usw.
Hinterlass eine Nachricht
Produkt-Beschreibung

Electric High Pressure Three-Piece Ball Valve With Internal Teeth Precise


1. Description:


Electric high pressure three piece internal thread ball valve ball core channel can be pipe line through the ball.


Overall smooth, simple structure, good sealing performance.


Especially suitable for applications requiring zero leakage rate.


2. Specification:


FABIA Valve Parameter List
Valve type: Electric High Pressure Three-Piece Ball Valve With Internal Teeth
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........


3. Features:


  • Electric three-piece screw ball valve is small in size, and the electric three-piece ball valve is composed of three parts of the valve shell, which is formed by four longer bolts clamping the middle valve body and the valve ball from both ends.
  • Advantage is that the maintenance disassembly does not need to remove the pipe thread, and directly disassemble the four bolts, and the middle part of the valve body can be removed.
  • Working principle is also through the 90 degree rotation of the pneumatic actuator to drive the rotation of the sphere to achieve the flow and block of the medium.



Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 0


Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 1
