Pneumatic Butterfly Valve For Air Valve Water Oil Gas

  • Pneumatic Butterfly Valve For Air Valve Water Oil Gas
Herkunftsort CHINA
Markenname FABIA
Zertifizierung FM,AMCA,ISO9001,CE,CCS,DNV
Modellnummer 1 Zoll 40 Zoll
Dokument Produktbroschüre PDF
Min Bestellmenge 1 Set
Preis Verhandlungsfähig
Verpackung Informationen Kartons/Holzfälle
Lieferzeit 15-30 Arbeitstage
Zahlungsbedingungen L/C, D/A, D/P, T/T, Moneygram, Western Union
Versorgungsmaterial-Fähigkeit 100-1000 Set pro Woche

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Produktname Rundes Schmetterlingsdämpfer Ventilverbindung Flansch
Material Edelstahl Ventilkörper Edelstahl
Kontrollmodus Handbuch/pneumatisches/elektrisches Konstruktionsdruck ±6000Pa
Leckage 56 l/s/m3 ((2000Pa) Anwenden Halbleiter, LCD-Panels, Biopharmazeutika
Hinterlass eine Nachricht
Produkt-Beschreibung

Pneumatic Butterfly  Valve

Water  Oil  Gas

1. Description:


The product is mainly used in industries such as semiconductors, LCD panels, and biopharmaceuticals for ventilation and exhaust system air volume control valves.Divided into micro, medium, and large sizes based on the size .


2. Specification:


Round butterfly(Micro Size)

Product No. Size Height Outer size D(shaft) Control Model
FB-RBD-0020-01 20 25 105 D12 Electric/Pneumatic
FB-RBD-0025-02 25 25 115 D12
FB-RBD-0032-03 32 25 135 D12
FB-RBD-0040-04 40 25 145 D12
FB-RBD-0050-05 50 30 160 D12
FB-RBD-0063-06 63 30 180 D12
FB-RBD-0080-07 80 30 195 D12
FB-RBD-0100-08 100 30 215 D12
FB-RBD-FREE FREE


Round butterfly(Medium Size)

Product No. Size Height Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
VB-RBD-0100-01 D100 150 1.2 1.5 D12 Electric/Pneumatic
VB-RBD-0100-02 D150 150 1.2 1.5 D12
VB-RBD-0100-03 D200 200 1.2 1.5 D12
VB-RBD-0100-04 D250 250 1.2 2.0 D12
VB-RBD-0100-05 D300 250 1.2 2.0 D12
VB-RBD-0100-06 D350 250 2.0 2.5 D25
VB-RBD-0100-07 D400 250 2.0 2.5 D25
VB-RBD-0100-08 D450 250 2.0 2.5 D25
VB-RBD-0100-09 D500 250 2.0 3.0 D25
VB-RBD-0100-10 D550 250 2.0 3.0 D25
VB-RBD-0100-11 D600 250 2.0 3.0 D25
VB-RBD-FREE FREE


3. Features:


  • Type:micro, medium, and large size
  • Design Pressure:±6000Pa
  • Leakage:56L/s/m³(2000Pa)
  • Beautiful, low noise, and low resistance l

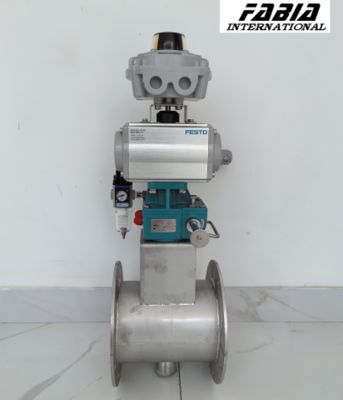

Pneumatic Butterfly Valve For Air Valve Water Oil Gas 0

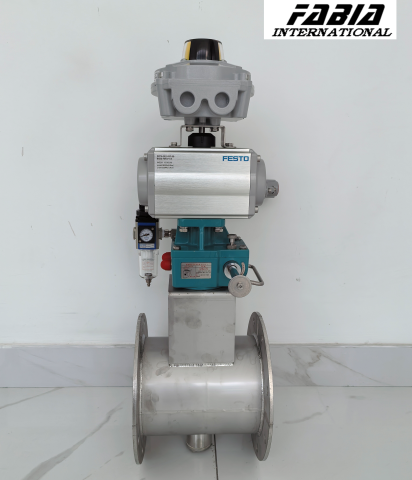

Pneumatic Butterfly Valve For Air Valve Water Oil Gas 1
