Pneumatisches SCR-Abgasschleuderschlepper zuverlässig und langlebig

  • Pneumatic SCR Exhaust Gas Butterfly Valve Reliable And Durable For Marine Industry
  • Pneumatic SCR Exhaust Gas Butterfly Valve Reliable And Durable For Marine Industry
  • Pneumatic SCR Exhaust Gas Butterfly Valve Reliable And Durable For Marine Industry
  • Pneumatic SCR Exhaust Gas Butterfly Valve Reliable And Durable For Marine Industry
  • Pneumatic SCR Exhaust Gas Butterfly Valve Reliable And Durable For Marine Industry
Place of Origin China
Markenname FABIA
Zertifizierung ISO9001,BV,CCS,DNV
Model Number 2 inch ～ 100 inch
Dokument Produktbroschüre PDF
Min Bestellmenge 1 Satz
Preis Verhandlungsfähig
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Product Name SCR Exhaust Gas Butterfly Valve Valve Application Ventilation
Ventilmaterial Edelstahl Valve Connection Flanged
Valve Operation Pneumatic Valve Certification BV,DNV,CCS
Valve Pressure ≤0.25Mpa Valve Seal Stainless steel
Valve Size 2-100 inch Valve Temperature 500℃
Typ des Ventils Schmetterling
Hervorheben

Dauerhafte Marine Butterfly Ventil

,

Zuverlässiges Meeresschmetterlingsventil

,

Pneumatisches SCR-Marine Butterfly-Ventil
Hinterlass eine Nachricht
Produkt-Beschreibung

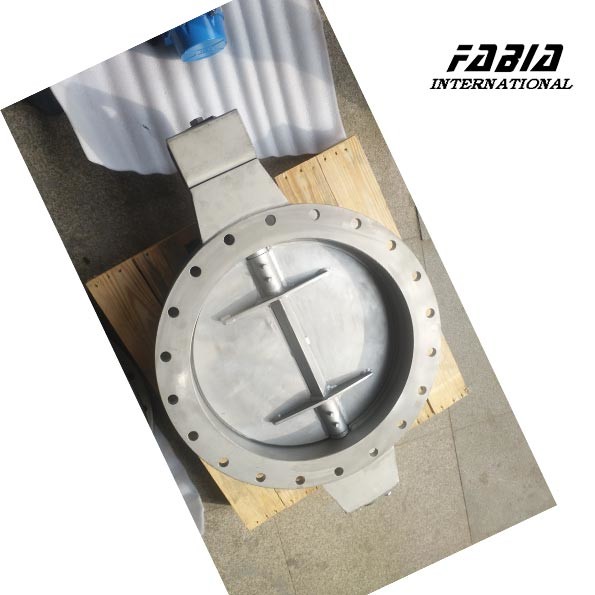

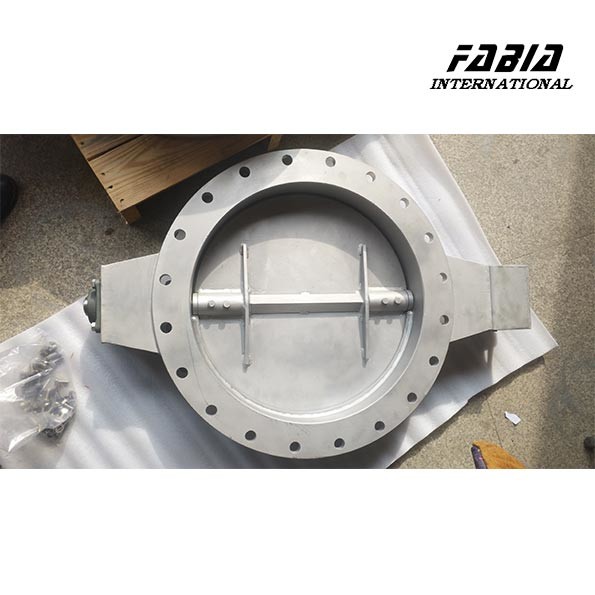

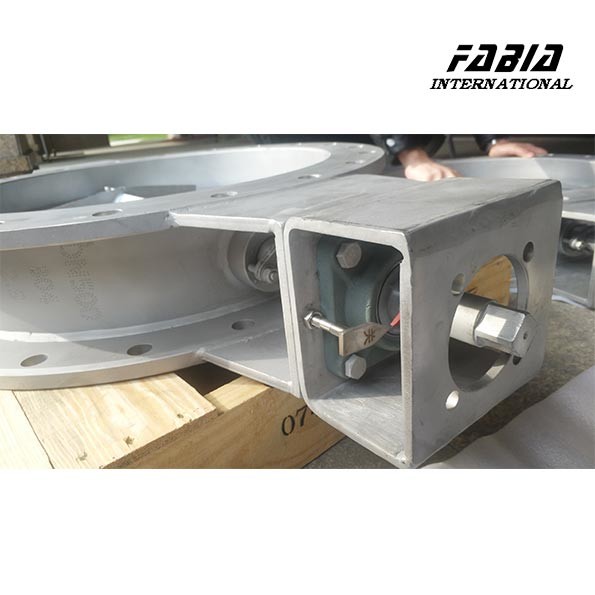

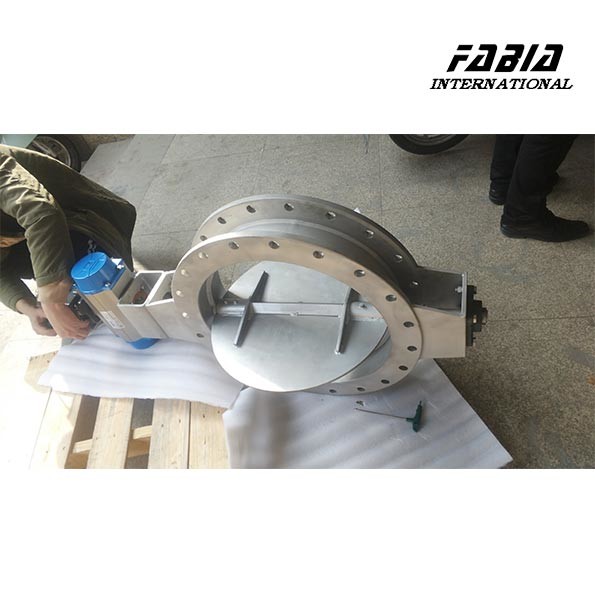

Pneumatic SCR Exhaust Gas Butterfly Valve Reliable and Durable for Marine Industry



1. Description:



SCR Exhaust Gas Butterfly Valve is mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen

oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.

In addition, FB-D-3 series butterfly valves are also widely used in the road industry, such as the exhaust gas exhaust pipe

system produced by the boiler in steel smelting, the catalytic combustion equipment pipe system in VOCs (RTO combustion furnace) and the exhaust gas pipe system produced by other combustion equipment.



2. Specification:



FABIA Valve Parameter List
Valve type: Flange type heavy-duty ventilation butterfly valve
Size: 2inch ～ 100 inch
Material:

316/316L/304/304L/ Corten
Connection type: Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: ≤0.25Mpa
Temperature: -≤500℃
Model: FB-D-3..........



3. Features:



  • Simple and light in structure
  • Suitable for low pressure air or other gas flow, pressure control and high temperature gas
  • the main structural components of the valve are welded
  • CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
  • High Efficiency Emission Reduction: Optimized design significantly reduces ship emissions, complying with stringent environmental regulations.
  • Durable and Reliable: Made of high-quality materials with a robust design to ensure long-term stable operation, reducing maintenance frequency and costs.
  • Smart Control: Equipped with advanced control systems for automated operation, enhancing operational efficiency and safety.

  • Multiple Safety Guarantees: Incorporates multiple layers of safety protection mechanisms to ensure safe and reliable valve operation.

  • Global Standard Certification: Certified by international authorities, ensuring product quality and performance meet global standards.
